AT A GLANCE
- Connects to DC-GH5 through Hot Shoe
- Provides Two XLR Audio Inputs
- Control Panel with Clear Cover
- Physical Switches & Dials
- Recording at up to 96 kHz & 24-Bit
- Cable Clamp for Wire Management
- Additional Shoe Mount on Top of Unit
- Powered by Camera
DESCRIPTION

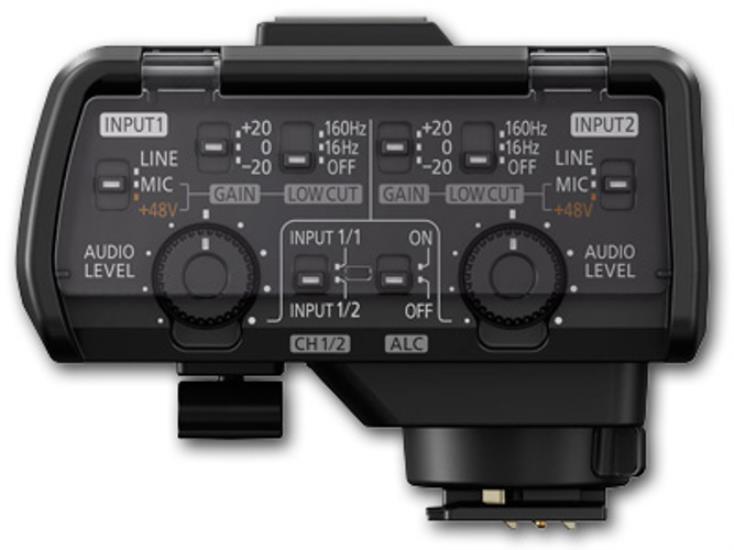

Expand the audio capabilities of your DC-GH5 mirrorless camera with this shoe-mounted DMW-XLR1 XLR Microphone Adapter from Panasonic. It connects to the camera directly through the hot shoe and provides two XLR inputs for using professional microphones. It also features a control panel with a clear cover that sports numerous physical dials and controls for changing the levels, gain, and low cut filter of each input individually. Also, it supports high-resolution recording formats up to 96 kHz and 24-bit. A cable clamp is present as well for cable management and a shoe mount on the top of the unit can support additional accessories. Additionally, it receives power directly from the camera.
SPECIFICATIONS
Input Connections 2 x XLR
Output Connections Hot shoe
Recording Bit Rate 16-bit - 24-bit
Sampling Frequency 48 kHz - 96 kHz
Number of Channels 2
Gain ±20 dB
Low Cut Filters 16 Hz - 160 Hz
