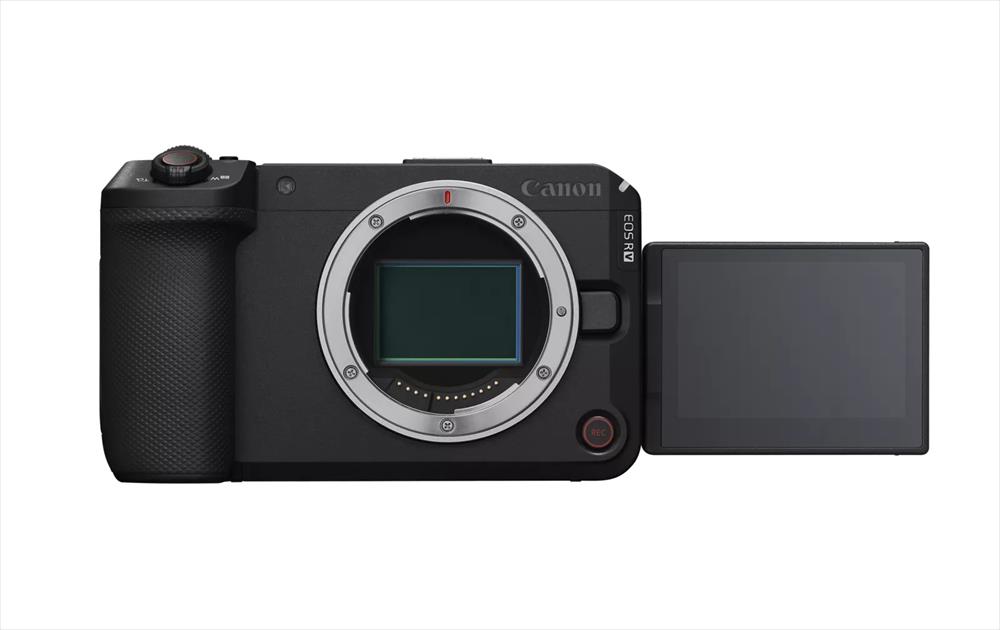

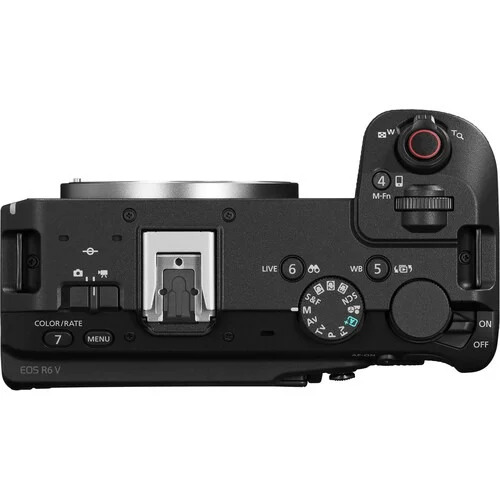

The EOS R6 V Camera is the first full-frame EOS V series camera. It is designed for advanced videographers, cinematic social media content, vertical video productions and podcasts, livestreams, VR and more. It’s built for creative videographers seeking high-performance video with its 7K / 32.5MP resolution full-frame image sensor and includes a host of video creation features such as active cooling, an additional vertical tripod mount with vertical video UI, an additional front record button, Power Zoom lever, tally lamp, and a full-size HDMI terminal.
The camera features powerful resolutions and framerates including 7K RAW recording at 60p, 7K 30p Open Gate recording for post-production versatility, 4K 120p slow motion, and high-quality oversampled 4K at up to 60p. With Canon Log 2 color, in-body image stabilization, and powerful Dual Pixel CMOS AF II focusing, this is the camera you’ll want to use to tell your stories.
Image Sensor Type 35.9 × 23.9mm CMOS
Effective Pixels Approx. 32.5 megapixels
Total Pixels Approx. 34.2 megapixels
Aspect Ratio 3:2
Low-Pass Filter Built-in / Fixed
Sensor Cleaning EOS integrated cleaning system
Colour Filter RGB Primary Colour
Image Stabilisation Sensor-shift IS · Up to 7.5-stop advantage (centre), 7.0-stop peripheral, depending on lens
Image Processor Type DIGIC X
Lens Mount RF / RF-S · EF and EF-S lenses via Mount Adapter EF-EOS R · EF-M lenses not compatible
Focal Length Factor 1.0× with RF and EF lenses · 1.6× with EF-S and RF-S lenses
Image Stabilisation Coordinated control OIS × IBIS / Digital
AF System Dual Pixel CMOS AF II
AF Coverage 100% horizontal and 100% vertical (Whole Area AF or Subject Detection)
AF Working Range EV -6.5 – 21
AF Modes One Shot · Servo AF · AI Focus AF
AF Areas (Auto)Â 1053 available AF areas (automatic selection)
AF Areas (Manual) 6097 stills / 4641 movie AF positions · Spot, 1-point, Expansion (4pt / surrounding), Flexible Zone 1–3, Whole Area
Subject Detection People (eyes, face, head, body) · Animals (dogs, cats, birds, horses) · Vehicles (racing cars, motorbikes, aircraft, trains) · Register People Priority — up to 10 registered people
AF Lock Locked on half-press or AF ON in One Shot AF · AF Stop via customisable button in Servo
AF Assist Beam Built-in LED or dedicated Speedlite
Manual Focus Selected on lens
Focus Bracketing Yes · In-camera depth compositing (JPEG, HEIF, RAW, C-RAW)
Metering Modes 384-zone real-time metering · Evaluative · Partial (6.2%) · Spot centre (2.9%) · Centre-weighted average
Metering Range EV -3 – 20 (23°C, ISO 100, evaluative)
AE Lock Auto on focus achieve · Manual via AE Lock button (P, Av, Fv, Tv, M)
Exposure Compensation ±3 EV in 1/3 or 1/2 stop increments
AEB ±3 EV in 1/3 or 1/2 stop increments
ISO Sensitivity Auto 100–64000 · Expanded L:50 / H:102400
Shutter Type Electronic shutter function on sensor
Electronic Shutter Rolling Shutter · 30–1/16000s (1/2 or 1/3 stop)
Mechanical / E1st Curtain 30–1/8000s (1/2 or 1/3 stop) · Bulb
Shutter Release Soft touch electromagnetic release
WB Modes AWB (Ambience / White priority) · Daylight · Shade · Cloudy · Tungsten · White Fluorescent · Flash · Custom · Colour Temperature
WB Settings Custom WB · WB shift · WB bracketing · Shockless WB · AWB response · AWB lock
WB Shift Blue/Amber ±9 · Magenta/Green ±9
WB Bracketing ±3 levels · 3, 2, 5 or 7 images · Blue/Amber or Magenta/Green bias
LCD Monitor Type 7.5cm (3″) TFT Colour LCD · Approx. 1.62 million dots
Coverage Approx. 100%
Viewing Angle Approx. 170° vertically and horizontally
Coating Anti-smudge coating
Brightness Auto · Manual (7 levels) · Colour tone: 4 settings
Touch Screen Capacitive · Menu, Quick Control, playback, AF point selection (stills & movie), touch shutter
Shooting Modes Stills: Scene Intelligent Auto, Scene Modes, Fv, P, Tv, Av, M, Custom ×3 · Movie: Auto, Scene Modes, Tv, Av, M, S&F, Custom ×3
Picture Styles Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined ×3
Colour Spaces RGB · BT.709 · BT.2020 · Cinema Gamut
Drive Modes Single · Continuous High+ · Continuous High · Continuous Low · Self-timer (2s / 10s)
Continuous Shooting Max. approx. 40fps · 330 JPEG / 150 RAW (CFexpress) / 140 RAW (SD) · Pre-Continuous: up to 20 shots before full shutter press
Intervalometer Built-in · 1 sec–99hr 59min 59sec · 01–9999 or unlimited shots
File Type — Stills
RAW 14-bit RAW and C-RAW (Canon RAW 3rd edition) · Exif 3.00
JPEG 8-bit · 10 compression options
HEIF 10-bit · 10 compression options
Simultaneous RAW + JPEG or RAW + HEIF (any combination)
Image Sizes RAW 3:2: 6960×4640 · 1.6× crop: 4320×2880 · JPEG/HEIF: L/M/S1/S2 in 3:2, 4:3, 16:9, 1:1
EOS Movie
RAW Video 7K (17:9) RAW Standard/Light · Open Gate (3:2) RAW Standard/Light · CFexpress card required
MP4 Resolutions Open Gate (3:2) 6912×4608 · 4K DCI 4096×2160 · 4K UHD 3840×2160 · 2K DCI 2048×1080 · Full HD 1920×1080
Frame Rates 4K up to 119.9fps · 2K / Full HD up to 179.8fps · Slow & Fast Motion 1–180fps
Colour Sampling XF-HEVC S YCC422 10-bit · XF-HEVC S YCC420 10-bit · XF-AVC S YCC422 10-bit · XF-AVC S YCC420 8-bit
Canon Log Canon Log 2 · Canon Log 3 · PQ · HLG · Canon 709 · BT.709 Standard · 20 Custom Picture presets
HDMI Output 7K RAW (Standard) ProRes via HDMI · 4K DCI/UHD · Full HD · Uncompressed YCbCr 4:2:2 10-bit
Max Duration 6 hours (<100fps) · 2 hours (100fps+)
Dual Card Recording Record to both cards · Relay · Proxy · Sub movie
Microphone Built-in stereo (48kHz, 24/16-bit ×2ch) · 3.5mm external · Digital external via Multi-Function shoe · 4CH audio support
AF (Movie) Dual Pixel CMOS AF II · Eye/Face Detection · Movie Servo AF · Manual Focus
Movie ISO Auto 100–25600 · H up to 102400
Frame Grab 8.8MP JPEG from 4K DCI · 8.3MP JPEG from 4K UHD
Card Slot 1 CFexpress Type B (CFexpress 2.0, VPG400) · Max 8TB
Card Slot 2 SD / SDHC / SDXC · UHS-II
USB SuperSpeed Plus USB 3.2 Gen 2 · USB Type-C®
HDMIÂ Full size (Type A)
Audio 3.5mm stereo microphone input · 3.5mm stereo headphone output
Remote E3-type terminal
Shoe Multi-Function shoe
Wi-Fi IEEE 802.11ac · 5GHz / 2.4GHz
Bluetooth Bluetooth 5.1
Network Functions FTP · FTPS · EOS Utility · image.canon · Camera Connect · Streaming · Content Transfer Professional · Camera Control API · UVC/UAC video calls (4K 60p / 4K 30p /                 FHD 60p / FHD 30p)
Battery LP-E6P (supplied) · LP-E6NH / LP-E6N compatible with limitations
Battery Life Approx. 640 shots (LCD, 23°C, CIPA)
Battery Indicator 6 levels
Chargers LC-E6E (supplied) · CBC-E6 · PD-E2 USB adapter · PD-E1 USB adapter
Body Materials Magnesium alloy body and chassis · Polycarbonate with glass fibre components
Weather Sealing Yes · Dust and water resistant construction
Operating Environment 0–40°C · 85% or less humidity
Dimensions (W×H×D) Approx. 141.8 × 83.3 × 79.7mm
Weight Approx. 598g (body only) · 688g with CFexpress card and battery
