PRODUCT HIGHLIGHTS

• Micro Four Thirds Mount Lens
• 24mm (35mm Equivalent)
• Aperture Range: f/2-22
• Full Metal Construction
• DSA, Aspherical, ED, & Super HR Elements
• Movie-Still-Compatible Autofocus System
• Seven-Blade Circular Aperture
• Minimum Focus Distance: 7.9"
• Filter Thread Diameter: 46mm

OVERVIEW

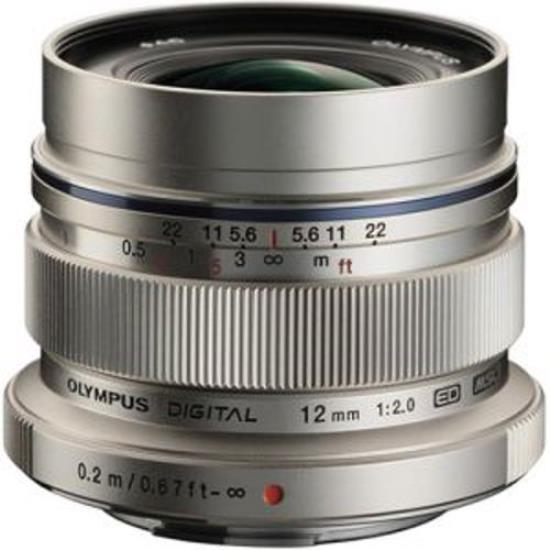

The M.ZUIKO DIGITAL ED 12mm f/2.0 Lens from Olympus is a fast prime lens featuring a full metal construction for durability. The 12mm benefits from an aperture range of f/2-22 and utilizes DSA, aspherical, ED, and Super HR elements to control aberrations for greater clarity and colour accuracy. Additionally, the lens features a seven-blade circular diaphragm for pleasing out-of-focus elements.

The lens features a Movie-Still-Compatible autofocus system for silent focusing even when tracking a subject in video. Along with autofocus, manual focusing is possible through a snap ring on the lens body that features a distance indicator. The lens focuses from 7.9" to infinity and accepts 46mm filters.

• Wide-angle 12mm prime lens with a 35mm equivalent focal length of 24mm
• Fast f/2 maximum aperture creates a shallow depth-of-field and is useful in low-light conditions
• The lens construction of 11 elements in 8 groups includes DSA, aspherical, Super HR, and ED glass elements, all of which minimize chromatic aberrations for greater clarity and color accuracy in your images
• Seven-blade circular aperture
• Snap ring allows you to manually focus the lens and it features a distance indicator
• Full metal construction

SPECIFICATIONS

Focal Length 12mm
Comparable 35mm Equivalent on Micro Four Thirds Format Focal Length 24 mm
Aperture Maximum: f/2 Minimum: f/22
Camera Mount Type Micro Four Thirds
Format Compatibility Micro Four Thirds
Angle of View 84°
Minimum Focus Distance 7.87" (20 cm)
Magnification 0.08x
Elements/Groups 11/8
Diaphragm Blades 7, Rounded
Image Stabilization No
Autofocus Yes
Tripod Collar No
Filter Thread Front:46 mm
Dimensions (DxL) Approx. 2.20 x 1
