Features:
Memory
Slot 1SD: SDHC (UHS-I / II), SDXC(UHS-I / II)
Slot 2SD: SDHC (UHS-I / II), SDXC(UHS-I / II)
Sensor size: 17.4 mm x 13.0 mm (Micro Four Thirds)
Lens mount: Micro Four Thirds Mount
Image Sensor: Image sensor type4/3 Stacked BSI Live MOS Sensor
Number of pixels: Number of effective pixels: Approx. 20.4 million pixels
Total number of pixels: Approx. 22.9 million pixels
Aspect ratio: 4:3
Dust reduction: Supersonic Wave Filter (image sensor dust reduction system)
Still Photo Recording: Recording format DCF2.0, Exif2.31
File format: JPEG, RAW(12-bit lossless compression), JPEG+RAW
Recording image size: RAW: 5184 x 3888
JPEG: 5184 x 3888 ~ 1024 x 768
Dual Slot Settings: Standard, Auto Switch, Dual Independent, Dual Same
Image Stabilisation System
Image stabilisation type: Built-in 5-axis sensor-shift image stabilisation
Image stabilisation mode: S-IS AUTO, S-IS1, S-IS2, S-IS3, OFF
Stabilisation performance: Compensation steps (Body only): 8.5
*When using the M.Zuiko Digital ED 12-40mm F2.8 PRO II
Focal length: 40mm (35mm equivalent: 80mm)
Compensation steps (Sync IS): 8.5
*When using the M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO
Focal length: 150mm (35mm equivalent: 300mm), halfway release image stabilisation Off, Frame rate: High
5-axis Sync IS Available
*When using the M.Zuiko Digital lenses equipped with image stabilisation
Focal length setting: 11 settings: 10 programmable settings (10 lenses)
*Lenses without communication function can be registered
Finder
Finder typeEye-level OLED electronic viewfinder, approx. 5.76M dots
Field of view / Viewfinder magnification: Approx. 100% / Approx. 1.48x[*1] ~ 1.65x[*2] (-1m-1, 50mm lens, Infinity)
*1: Finder Style 1, 2 (aspect ratio 4:3)
*2: Finder Style 3 (aspect ratio 4:3)
Eye point / Diopter adjustment range: Approx. 21mm (-1m-1, Distance from rear lens surface) / -4 ~ +2m-1
Display Grid: Off / normal grid / trichotomy /golden grid / scale / diagonal / movie grid
*grid colour is selectable
Level Gauge: 2-axis (horizontal/vertical) level gauge
Finder Style: 3 styles
Brightness and Colour Temperature Control: Adaptive brightness technology (EVF Auto Luminance) / ±7 level manual brightness control /±7 level manual colour temperature control both GM and BA
LV Mode: Standard/S-OVF
Eyecup: EP-18 (bundled)
Monitor
Monitor type: 3.0-inch vari-angle monitor (electrostatic capacitance touch panel), Approx.1.62M dots (3:2),
Touch control: Shutter release, Touch AF (AF area selection, AF area size adjustment), Subject selection by touch operation, AF targeting pad, Frame forward/backward, Magnified playback, Super Control Panel, Wi-Fi connection, Movie controls, Menu control*
*Tab selection/page selection/character input
Tilting capability: Swivel type
Brightness / Colour temperature control: ±7 levels / GM ±7 levels, BA ±7 levels
Focusing
AF system: High-speed imager AF
*Imager phase detection AF and imager contrast AF used in combination
AF working range: Lowest luminance (-5.5 EV) / Highest luminance (19 EV)
*ISO approx. 100, with F2.8 lens
Focusing point / Focusing point selection mode: Cross-type phase detection AF (1,053 points), Contrast AF (1,053 points) / All target, Single target (1 point), Small target (9 points), Cross target (39 points), Middle target (63 points), Large target (165 points), Custom target* (AF area and its increment steps selectable)
*Number of saved custom target settings: 4
Focus mode: Single AF (S-AF), Single AF (S-AF+MF), Continuous AF (C-AF), Continuous AF (C-AF+MF), Manual Focus (MF), AF tracking (C-AF + TR), AF tracking (C-AF + TR+MF), Preset MF, Starry sky AF (S-AF), Starry sky AF (S-AF+MF)
C-AF tracking sensitivity settings: 5 steps
C-AF Center Priority: Available
AF limiter: Available
*Up to 3 distance settings can be saved
AF targeting pad: Available
Magnified frame AF: 3x, 5x, 7x, 10x, 14x
AI detection AF: Human, Formula cars, rally cars, motorcycles / Aircrafts, helicopters / Bullet trains, standard trains, steam locomotives / Birds / Dogs, cats
Magnify MF: Available
Peaking function: Available
AF Focus Adj.: Available
AF illuminator: Available
Focus indicator: Available
Exposure
Control (Still) Metering system
(TTL Image sensor metering)Digital ESP metering (324-area multi pattern metering), Center-weighted average metering, Spot metering*, Spot metering with highlight/shadow control*
*Also available AF target spot metering
Metering range: Lowest luminance (-2 EV) / Highest luminance (20 EV)
*ISO approx. 100, with F2.8 lens
ISO sensitivity (AUTO) LOW (approx.80) ~ 102400
* Upper default ISO 25600
ISO sensitivity (MANUAL) LOW (approx.80, approx.100), 200 ~ 102400
Exposure compensation: ±5 EV (adjustable by 1/3, 1/2 or 1 EV steps)
*Live View only reflects up to ±3 EV steps
AE lock: Available
*Locks with a half-press of the shutter button (can be set to other buttons)
Anti-Flicker Shooting: Available
Shutter
Focal-plane shutter (mechanical shutter) 1/8000 ~ 60 sec, Live Bulb, LiveTime, Live Composite
Electronic first curtain shutter: 1/320 ~ 60 sec
*Shutter speed faster than 1/320 sec will be automatically switched to mechanical shutter.
Electronic shutter (Silent mode) 1/32000 ~ 60 sec
*Settings for sound, AF illuminator, and flash can be set to ON/OFF separately, default setting is Off for all three
Flicker Scan: Video recording 1/30 ~ 1/500.0 Still 1/50.0 ~ 1/6944
*Video recording S/M mode, Still S/M silent mode only
Drive
Sequential shooting maximum speed [Sequential shooting] approx 10 fps with selectable 1-10 fps
[Anti-shock sequential shooting] approx 10 fps with selectable 1-10 fps
[Silent sequential shooting] approx 20 fps with selectable 5, 10, 15, 20 fps with blackout
[Silent sequential shooting SH1] approx 120 fps with selectable 60, 100, 120 fps without blackout
*Slower shutter speeds and flash can not be used.
*Focus and exposure are fixed at first frame.
[Silent sequential shootingSH2] approx 50 fps with selectable 12.5, 16.7, 25, 50, fps without blackout
*Slower shutter speeds and flash can not be used.
*Compatible lenses are limited.
[Pro Capture] approx 20 fps with selectable 5, 10, 15, 20 fps
*Slower shutter speeds and flash can not be used
[Pro Capture SH1] approx 120 fps with selectable 60, 100, 120 fps
*Slower shutter speeds and flash can not be used.
*Focus and exposure are fixed at first frame.
[Pro Capture SH2] approx 50 fps with selectable 12.5, 16.7, 25, 50 fps
*Slower shutter speeds and flash can not be used.
*Compatible lenses are limited.
Flash
Flash intensity control method TTL Auto, Manual, Auto, Super FP (FP-TTL AUTO, FP-MANUAL)
*Auto and Super FP are available on the external flash
Flash mode: Fill-in, Flash Off, Slow sync., Manual* (1/1 (FULL) ~ 1/64)
* manual is available only with FL-LM3
Red-eye sync: Available
Synchronisation timing: 1st curtain, 2nd curtain selectable
Synchronisation speed: 1/250 sec.
*When using Super FP: 1/125-1/8000 sec.
*When using electronic shutter: 1/100 sec. up to ISO12800, 1/50 sec. for ISO 16000 and higher, and 1/50 sec. for ISO bracketing
Flash intensity control: ±3 EV (1/3, 1/2, 1 EV steps selectable)
Compatible external flash: FL-LM3, FL-900R, STF-8, FL-700WR
Wireless
Flash Control OM SYSTEM (Olympus) Wireless RC Flash system
(Triggered and controlled by flash)
Compatible external flashFL-900R, FL-700WR
Commander flashes: FL-LM3, FL-900R, STF-8, FL-700WR
Radio wireless control: Available
External Flash intensity type: TTL Auto, Manual, Auto, FP-TTL AUTO, FP-MANUAL
Channel: 4 channels
Group No.3 groups (External flash 2 groups + commander flash)
White Balance
White balance mode: Auto WB, 7 WB presets, 4 Capture WB, Custom WB (Kelvin setting)
White balance compensation: ±7 steps along A-B / G-M axis * Including Custom WB
Colour Mode
Colour matrixs: RGB, Adobe RGB
Video
RecordingVideo recording format: MOV(MPEG-4AVC/H.264)
4096 x 2160 (C4K) 30p?25p?24p / LongGOP(Approx. 102Mbps)
60p?50p / LongGOP(Approx. 202Mbps)
3840 x 2160 (4K) 30p?25p?24p / LongGOP(Approx. 102Mbps)
60p?50p / LongGOP(Approx. 202Mbps)
1920 x 1080 (FHD)30p?25p?24p / ALL-I(Approx. 202Mbps)?LongGOP(Approx. 27Mbps)
60p?50p / LongGOP(Approx. 52Mbps)
Video recording format: MOV (HEVC/H.265)
4096 x 2160 (C4K) 30p?25p?24p / LongGOP(Approx. 77Mbps)
60p?50p / LongGOP(Approx. 152Mbps)
3840 x 2160 (4K) 30p?25p?24p / LongGOP(Approx. 77Mbps)
60p?50p / LongGOP(Approx. 152Mbps)
1920 x 1080 (FHD)30p?25p?24p / ALL-I(Approx. 82Mbps)?LongGOP(Approx. 22Mbps)
60p?50p / ALL-I(Approx. 162Mbps)?LongGOP(Approx. 42Mbps)
Vertical Video: Available
*Video files are saved vertically when holding the camera vertically to shoot. *Videos are not played in the vertical orientation on the camera.
Art Filter Movie: Available
*Frame rates may drop when certain Art Filters are used.
One-push Movie Digital Converter: Approx. 1.4x
Time Lapse Movie: 3840 x 2160 (4K) / 5fps, 10fps, 15fps, 30fps
1920 x 1080 (FHD) / 5fps, 10fps, 15fps, 30fps
1280 x 720 (HD) / 5fps, 10fps, 15fps, 30fps
Quick Movie / Slow Movie: Available
High speed movie240,200,120,100fps(1920×1080 / MPEG-4 AVC/H.264)
200,120,100fps(1920 x 1080 / HEVC/H.265)
Image Stabilisation for video recording: M-IS1 (multi motion IS by Image sensor shift and electronic image stabiliser),
M-IS2 (Multi motion IS by Image sensor shift), OFF
*Field of view varies when using M-IS1. Using lens which is equipped with image stabilisation can be given top priority.
Grid Line: Available
Focus Peaking: 4 colours
Zebra Pattern: Available
* 2 levels selectable to set
Center Marker: Available
Time code: Rec run / free run, drop frame / non-drop frame
Live View Output via HDMI: Monitor mode / Record mode / RAW mode
*In monitor mode, the image can not be enlarged on the camera when a movie is being recorded.
*In record mode, movie quality can be set to YCbCr 4:2:2 (8 bit).
*When recording simultaneously on the camera in 4K/C4K/FHD HS, 4:2:0 is upsampled to 4:2:2.
*In RAW mode, output video quality is 4K/C4K 12bit RAW data, frame rate follows movie setting, and sound will be recorded.
Movie Picture Mode: Flat, OM-Log400, HLG
AE Lock: Available
Power Requirements
BatteryBLX-1 Li-ion battery
Battery status display: Remaining power (10 steps, %, or by-minute display), Shot count, Degradation
USB bus power A USB PD bus power can be used
*PD compliant Camera: Rev 3.0 Ver 1.0a
USB charging Built-in battery can be charged with USB
* When the camera power is off
* Performance varies depending on different USB devices
Sleep mode 1/3/5 min., Off
Number of recordable images: Standard mode: approx. 500 shots / Quick sleep mode: approx. 1010 shots
*With KIOXIA KSDXU-A064G, IS ON, with no flashes attached, based on CIPA test standards
Battery life for movie recording: Under standard JEITA testing: approx. 90 minutes
When zoom and other operational functions are not used: approx. 150 minutes
Dimensions / Weight Dimensions Approx. 134.8mm(W) x 91.6mm(H) x 72.7mm(D)
*Based on CIPA standards: excludes protrusions
Weight Based on CIPA standards, with 1x BLX-1 battery and 1 memory card, without eyecup): 599g
Body only: 511g

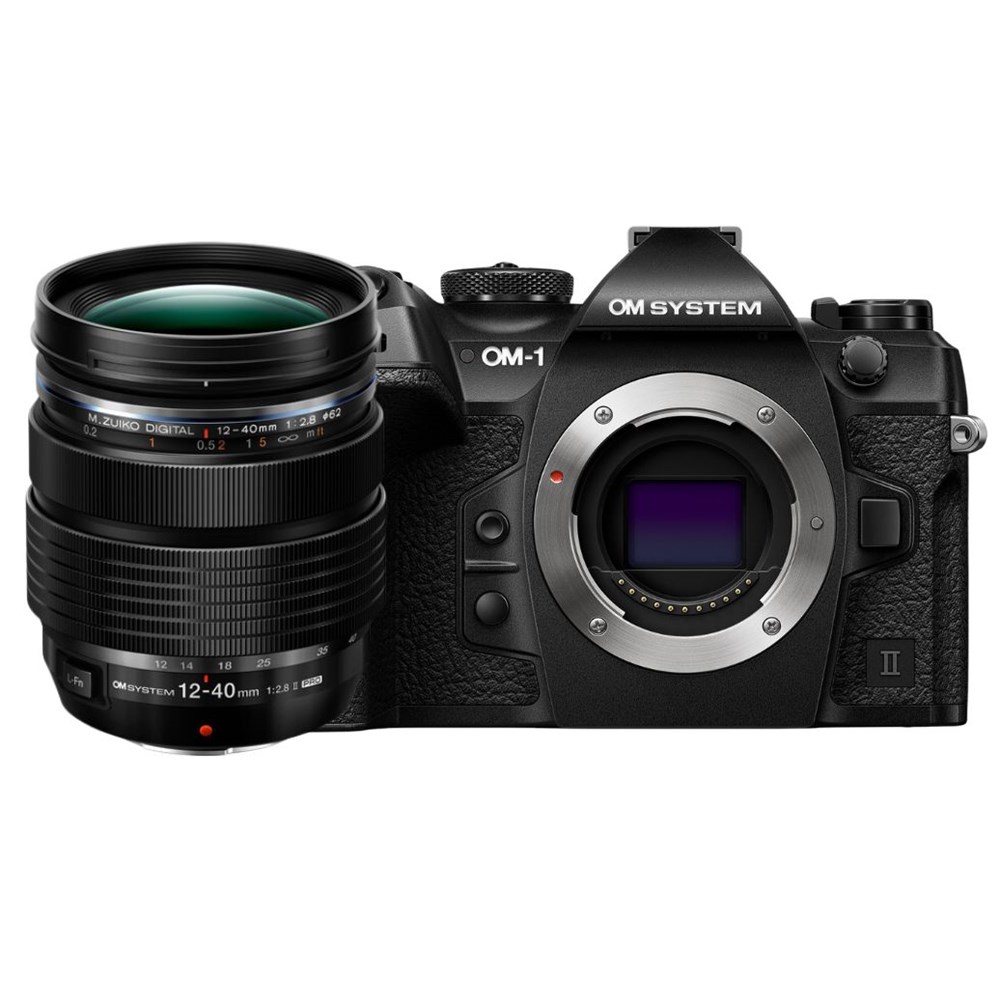

M.Zuiko Digital ED 12-40mm f/2.8 PRO II Lens
Maximum Aperture f/2.8
Minimum Aperture f/22
Lens Mount Micro Four Thirds
Lens Format Coverage Micro Four Thirds
Angle of View 84° 30'
Minimum Focus Distance 7.9" / 20 cm
Maximum Magnification 0.3x
Optical Design 14 Elements in 9 Groups
Diaphragm Blades 7, Rounded
Focus Type Autofocus
Image Stabilization No
Filter Size 62 mm (Front)
Dimensions (ø x L) 2.8 x 3.3" / 70 x 84 mm
Weight 13.5 oz / 382 g
