Key Features

• 7" 1920 x 1080 LCD Touchscreen
• Control and Monitor Your Footage
• Comprehensive Image Monitoring Tools
• SDI and HDMI I/O, USB-C Connectivity
• Control Knob, Side Handgrip
• LUT Support, Accurate Color Reproduction
• 1/4"-20 Threads, Strap Holes
• BP-U Battery Powered, Aluminum Body

High Color Accuracy

The DP7 features Sony's professional video color calibration technology for accurate reproduction that compensates for color temperature drifting during use. You can also apply LUTs like S-Log3 or up to 16 uploaded presets via SD card.

Responsive Control Knob

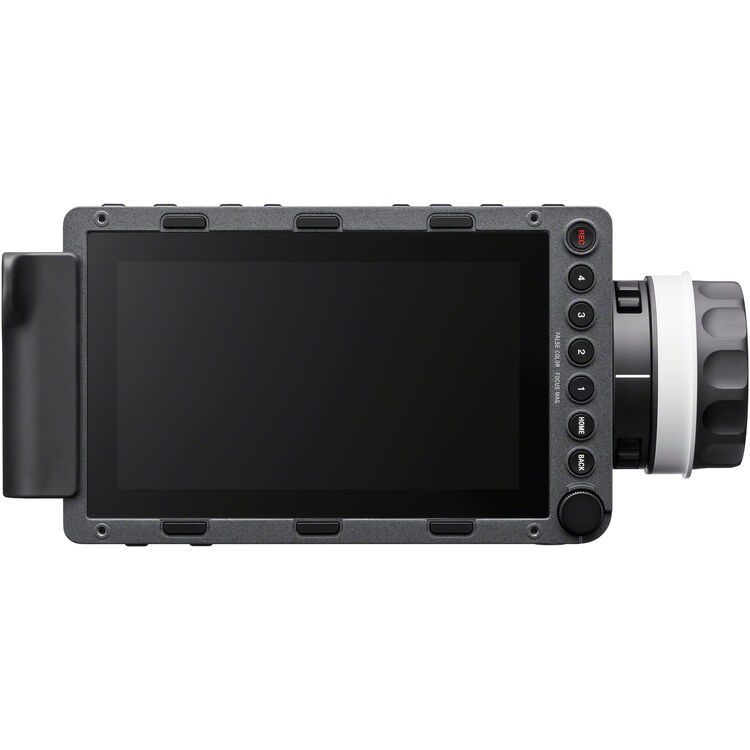

An included tactile control knob attaches to the side of the monitor to perform focus pulls with compatible Cinema Line cameras in both wired and wireless workflows. View footage on the Lens Control page. The knob itself features an ergonomic design for accurate control and is powered directly from the monitor.

Focus and Zoom Support

• The focus indicator links with the control knob for precise focus pulling. Mark mechanical stop settings and focus points as needed.
• Use monitor touch focus or touch tracking with your compatible FX camera. Switch between manual and autofocus for greater flexibility.
• The Lens Control page lets you zoom in and out via button controls or touch operation with a compatible lens attached to your camera. Adjust zoom speed for smooth operation suited to your specific project.

Intuitive Controls

Integrated buttons along the LCD in a BIG6 configuration offer fast access to a wide variety of settings, such as FPS, ISO, shutter, iris, look, and white balance. ITEM keys correspond to individual feature pages. The REC button toggles recording. ASSIGN buttons and a multifunction dial can be customized depending on your needs. Other features include a Time Counter and Audio Level Meter, which can be displayed on the monitor simultaneously.

Comprehensive Image Monitoring Tools

Double-tap anywhere on the screen to zoom in up to 6x. Pinch to zoom and swipe to move the zoomed area. The Scopes page offers waveform, vectorscope, false color, and zebra displays for exposure metering. Additional functions like aspect marker, de-squeeze, and peaking support accurate framing and focus.

Wired and Wireless Control

Wired control can be set up using the Ethernet or USB-C ports. Connect a third-party video transmitter unit to the DP5 via HDMI input to wirelessly connect to your camera and transmit video up to 4K.

Flexible Power Options

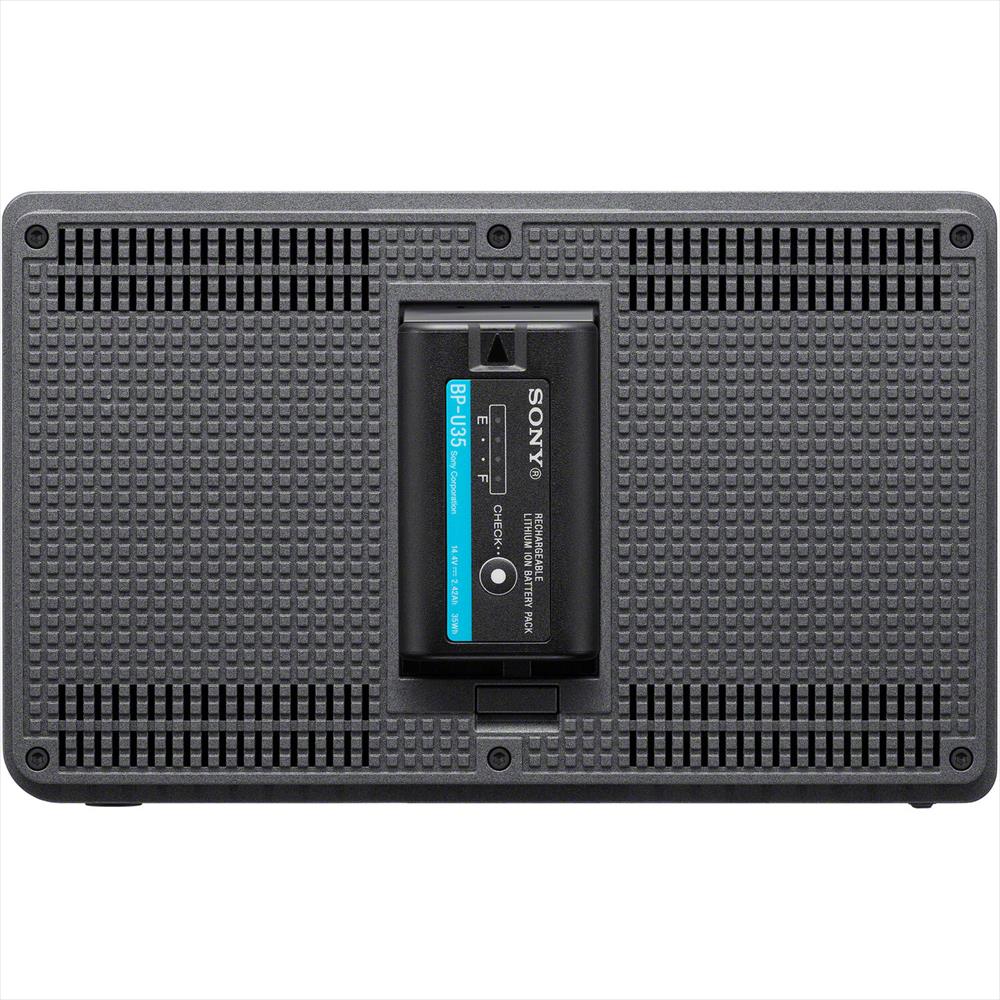

The DP7 can be powered via a Sony BP-U type battery thanks to the plate on the back of the monitor, which also supports hot-swapping. The USB-C port can function as a power input using a compatible external power source.

Durable Construction

A rugged aluminum body ensures a lightweight and durable design. Four 1/4"-20 threads and four strap slots allow you to attach the included side handgrip and a separately available strap for one-handed operation. The housing has a heat-dissipating design with a built-in cooling fan. Selectable modes help ensure stable operation in a variety of environments.

Compatibility: Sony FX30 / FX2 / FX3A / FX5

Panel Type: LCD

Size: 7"

Native Resolution: 1920 x 1080

Touchscreen: Yes

Maximum Brightness: 2000 nits / cd/m2

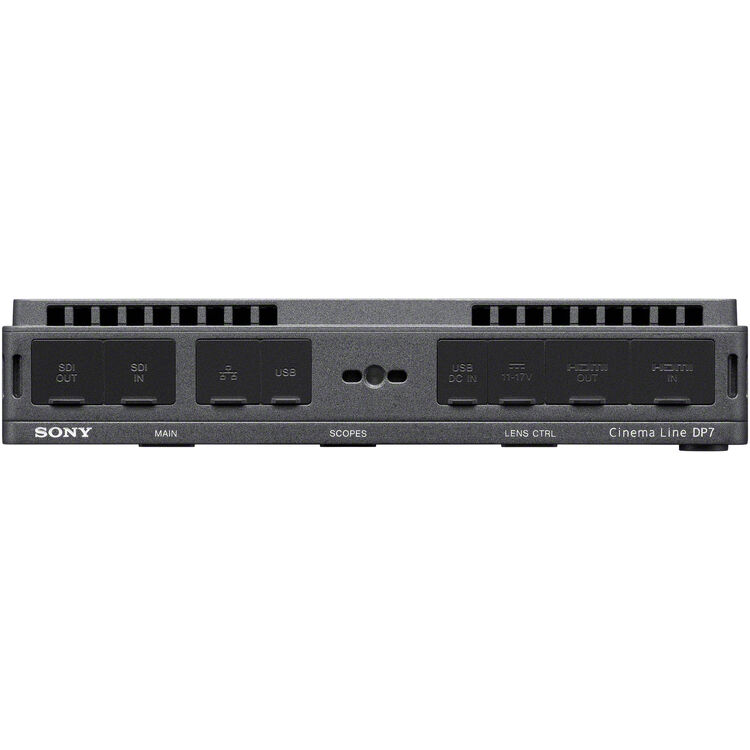

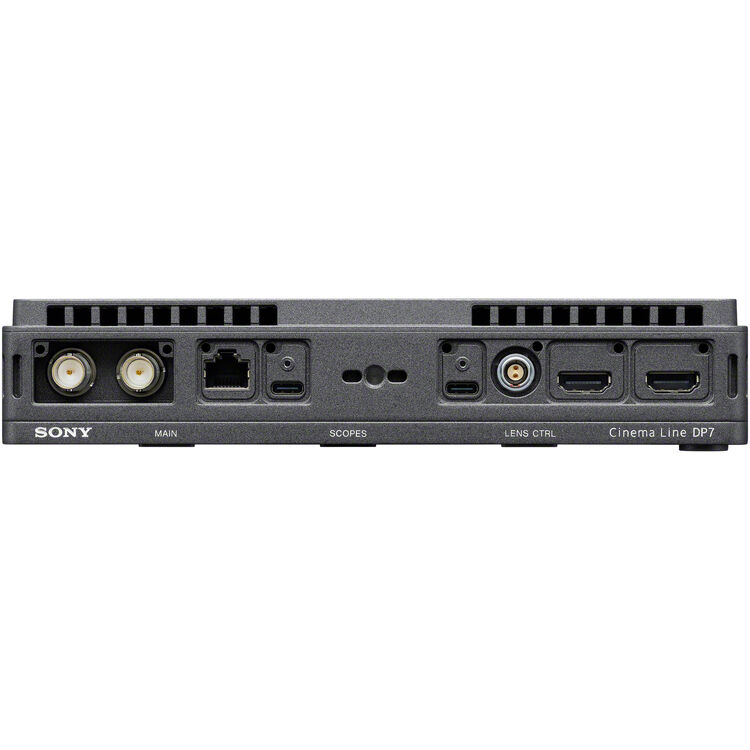

USB I/O: 2 x USB-C Female Input/Output

Video I/O:  1x HDMI Input
                  1x HDMI Output
                  1x BNC (12G-SDI) Input
                  1x BNC (12G-SDI) Output
                  1x RJ45 Input/Output ( Ethernet )

Audio I/O: 1x 1/8" / 3.5 mm Headphone Input

Media/Memory Card Slot: Single Slot: SD (Unspecified Type)

Wireless: Wi-Fi

Power Source: Battery, USB

Battery Type: 1x Sony BP-U Series

Mounting: 4x 1/4"-20 Thread

Color: Black

Material of Construction: Aluminum
