AT A GLANCE

• Medium Format | f/2.8 to f/22
• 79mm (Full-Frame Equivalent)
• Manual Focus Design
• +/- 10° Tilt, +/- 8° Shift
• Maximum Magnification: 1:1
• Minimum Focusing Distance: 12.6"
• 15-Blade Diaphragm
• Two Extra-Low Dispersion Elements
• One UHR Element
• 77mm Filter Thread

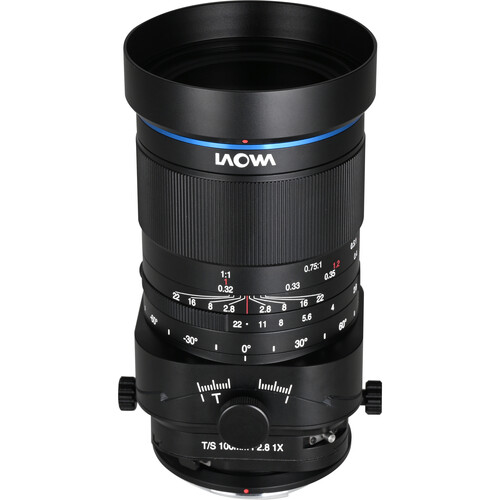

The Laowa 100mm f/2.8 Tilt-Shift 1x Macro Lens from Venus Optics provides a 79mm full-frame equivalence and is a uniquely versatile telephoto prime. Availing tilt of +/- 10° and shift of +/- 8°, this lens allows precise perspective control and manipulation of your focal plane. With its true-to-life 1:1 magnification, this prime lens can effectively capture a wide range of subjects including commercial, landscape, and architectural. A two-rotation system allows 90° rotating for changing tilt direction and 360° mount rotation with clicks every 15° for shift direction.

• Minimum focusing distance of 12.6" for working moderately close to subjects
• 13 elements in 10 groups, including two extra-low dispersion elements and one ultra-high refraction element for improved image quality
• 15-bladed diaphragm for smooth, flattering bokeh
• Bright f/2.8 maximum aperture for reliable low-light performance
• 77mm filter thread for wide compatibility with lens attachments
• Rotating lens support for tripod attachment

Maximum Aperture  f/2.8

Minimum Aperture  f/22

Lens Mount  FUJIFILM G

Tilt-Shift  +/- 8 mm Shift
               +/- 10 mm Tilt

Minimum Focus Distance  12.6" / 32.0 cm

Maximum Magnification  1x

Macro Reproduction Ratio  1:1

Optical Design  13 Elements in 10 Groups

Diaphragm Blades  15

Focus Type  Manual Focus

Image Stabilization  No

Tripod Collar  Fixed and Rotating

Filter Size  77 mm (Front)

Dimensions (ø x L)  3.3 x 6.4" / 85 x 162 mm

Weight  2.7 lb / 1225 g
