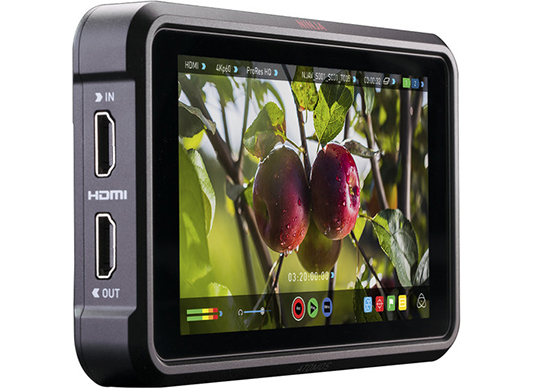

The Atomos Ninja V 5" 4K HDMI Recording Monitor is a 5" on-camera monitor/recorder that records and plays back DCI 4K, UHD 4K, and HD video from purpose-built mini-SSDs.
- Panel Type IPS-Type LCD
- Display Size 5.0" / 12.7 cm
- Screen Resolution 1920 x 1080
- Aspect Ratio 16:9
- Touchscreen Yes
- Maximum Brightness 1000 cd/m2
- Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
- Pixels Per Inch (ppi) 427 ppi
- Color Gamut 100% Rec. 709
- Real-Time LUT Monitoring SDR
- I/O: Video 1 x HDMI Type A (HDMI 2.0) Output, 1 x HDMI Type A (HDMI 2.0) Input Audio 1 x 3.5 mm Mic/Line Input, 1 x 3.5 mm Headphone Output
- Built-In Speaker None
- Power 1 x Barrel Input
- Other I/O 1 x LANC (2.5 mm)
- Card Slot None
- Format Support: Video Format HDMI (8/10-Bit 4:2:2), DCI 4K: 60/50/30/25/24, UHD 4K: 60/50/30/25/24, 1080p: 120/60/50/30/25/24, 1080i: 60/50, 720p: 60/50
- Video Signal Conversion HDMI to SDI: DCI 4K: 24/25/30/50/60, UHD 4K: 24/25/30/50/60, 1080p: 24/25/30/50/60/100/120, 1080i: 50/60, 720p: 50/60
- Pulldown Conversion 2:2, 3:2
- Encoding Formats 3840 x 2160
- ProRes 422, LT, HQ
- DNxHR HQ, HQX, SQ, LB
- Recording Media 1 x 2.5" SSD (SATA III)
- 1 x AtomX SSDmini (SATA III)
- Power: DC Input Power 6.2 to 16.8 VDC, Battery Type 1 x L-Series
- Power Consumption 10 W (Typical), 19 W (Maximum)
- Mounting: Mounting 2 x 1/4"-20 Female
