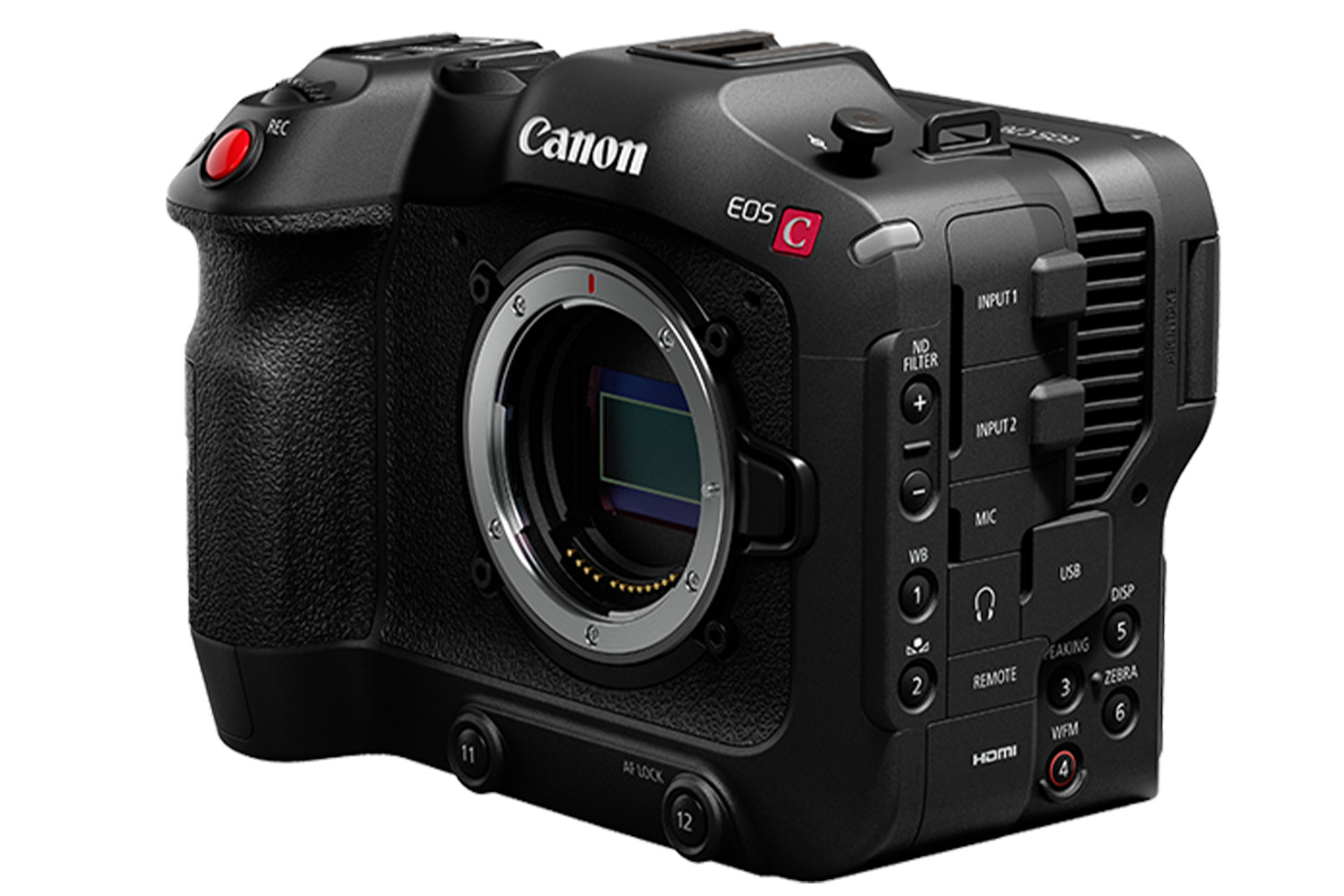

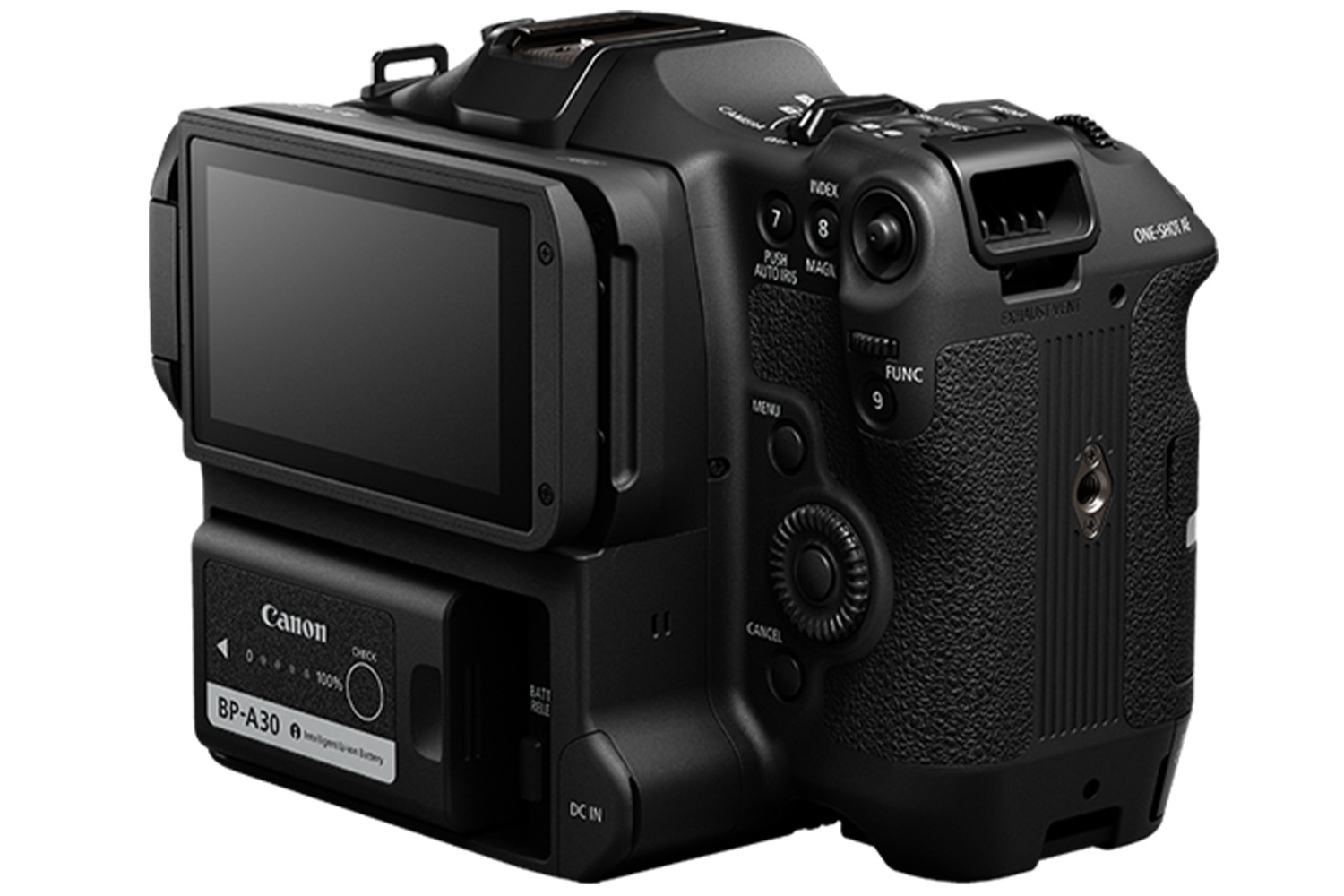

Incorporating key Cinema EOS video tools in a mirrorless- style body, the Canon EOS C70 Cinema Camera features a Super35 DGO (Dual Gain Output) sensor for capturing nuanced images with up to 16+ stops of high dynamic range.
- Sensor Size 26.2 x 13.8 mm (Super35)
- Sensor Type CMOS
- Sensor Resolution Actual: 9.6 Megapixel (4206 x 2280)
- Effective: 8.85 Megapixel (4096 x 2160)
- Sensor Windowing 2048 x 1080 in 16:9 When Recording in Super 16
- Pixel Pitch 6.4 µm
- Color Filter Bayer
- Shutter Type Rolling Shutter
- ISO 100 to 102,400
- Gain -6 to 54 dB (Native), -2 to 54 dB (Expanded) I>Advertised Dynamic Range 16 Stops
- Lens Mount Canon RF
- Lens Communication Yes
- Shutter Speed 1/12 to 1/2000 sec (In 60p Mode), 1/15 to 1/2000 sec (In 50p Mode)
- Shutter Angle 11 to 360°
- Built-In ND Filter Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64), 8 Stop (1/256), 10 Stop (1/1024) ND Filters
- Built-In Microphone Type Stereo, Mono
- Variable Frame Rates DCI 4K: 12 Up to 120 fps, DCI 2K (Windowed): 12 Up to 180 fps
- Display Type Articulating Touchscreen LCD
- Size 3.5"
- Resolution 2,760,000 Dot
- Video Connectors 1 x HDMI Output
- Audio Connectors 2 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input, 1 x 1/8" / 3.5 mm Stereo Input, 1 x 1/8" / 3.5 mm Stereo Headphone Output
- Other I/O 1 x USB Type-C Control, Video Input/Output, 1 x BNC Timecode Input/Output, 1 x 2.5 mm LANC Control
- Battery Type Canon BP-A Series
- Power Connectors 1 x Barrel (11.5 to 20 VDC) Input
- Tripod Mounting Thread 1/4"-20 Female (Bottom), 1/4"-20 Female (Side)
- Dimensions 6.3 x 5.1 x 4.6" / 160 x 130 x 116 mm
- Weight 2.58 lb / 1.17 kg
