Sensor-Shift Image Stabilization
Helping to achieve the utmost sharpness when photographing handheld, Dual I.S. 2 combines the S1's 5.5 stop-rated 5-axis sensor-shift image stabilization technology with lens-based 2-axis image stabilization to compensate for a broader range of movement types to render sharper, clearer imagery. Dual I.S. 2 requires the use of compatible Lumix lenses featuring O.I.S. This stabilization system is able to compensate for approximately 6 stops of camera shake.
DFD Autofocus System
For accelerated autofocus performance, the DFD (Depth-From-Defocus) technology quickly calculates the distance to subjects and adjusts the focusing position in as little as 0.08 seconds, with sensor and lens communication occurring at rates up to 480 fps. This contrast-detection type focus method benefits both still and video recording modes, as well as subject tracking applications, using Advanced AI Technology, where subject type, colour, size, and motion vectors are used to intelligently lock-onto the moving subjects and ensure precise focus. When working with portrait subjects, face/eye detection capabilities make it easier to photograph people and prioritize focusing as specifically as on a subject's pupil. The focusing sensitivity and speed can be adjusted to further improve performance with certain subjects. It also features 225 AF areas, which provide excellent control over where the camera will focus. Additionally, supporting working in low-light conditions, a Low Light AF feature enables accurate AF performance down to -6 EV.
Benefiting manual focus operation, focus peaking is available that highlights bright edges of contrast with a coloured outline for quickly recognizing your focus point, as well as Touch MF Assist for touch-to-focus operation. Other AF features include an AF Point Scope setting that temporarily magnifies the subject by 3x to 10x for confirmation of the focus position and a custom selectable AF zone for Multi AF / Custom Multi AF.
6K and 4K PHOTO
Utilizing the S1's video recording capabilities, a trio of still shooting modes are available for recording continuous 3:2 or 4:3 8MP stills at a 60 or 30 fps shooting rate or 18MP stills at a 30 fps shooting rate:
- Burst: This mode will allow you to continuously record, making it ideal for instances where you need a fast frame rate in order to capture the best moment.
- Pre-Burst: This mode is ideal for times when you're unsure of the critical moment to press the shutter button and will record images one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.
- Burst (S/S): This mode most closely follows the video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8 or 18MP frame.
Bluetooth and Wi-Fi
Bluetooth Low Energy (4.2) provides constant connection between your smartphone or table and the camera with minimal power consumption. For more robust wireless activities, IEEE 802.11ac and b/g/n support is also available for faster transmission and more fluid remote control and monitoring.
Complementing the camera's wireless connectivity, Lumix Sync is an iOS and Android app designed to pair with the camera for smartphone or tablet-based remote shooting control and wireless image transferring.

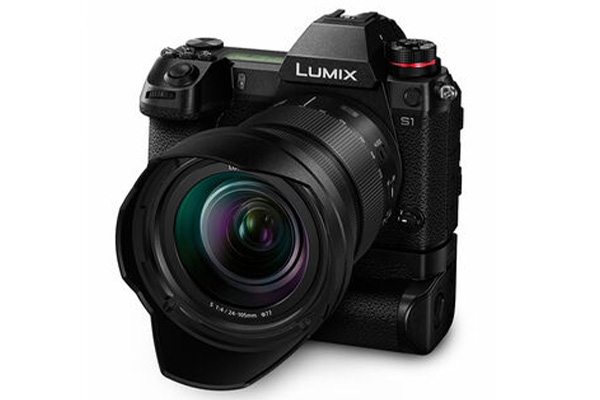

Lumix S 24-105mm f/4 Macro O.I.S. Lens
Included with the camera body, the Lumix S 24-105mm f/4 Macro O.I.S. is a wide-angle to short-telephoto zoom featuring a constant f/4 maximum aperture. Its optical design includes a series of low dispersion and aspherical elements, which control a variety of aberrations, colour fringing, and distortion in order to realize a high degree of sharpness, clarity, and colour accuracy. Balancing its optical performance, this zoom is also unique due to is 1:2 maximum magnification ratio and 11.8" minimum focusing distance to suit working with close-up subjects. Additionally, an Optical Image Stabilizer, which supports the camera's Dual I.S. 2, helps to control the effects of camera shake for sharper handheld shooting, and the lens sports a weather-sealed design for use in harsh conditions.
Other Camera Features
- By using sensor-shift stabilization technology, the S1 features a High Resolution mode to capture and compile eight separate exposure to create a single 96MP raw or JPEG file. Suitable for static subjects and when working on a tripod, this mode creates a more highly detailed and colour accurate image than a single shot alone can produce and produces an image with a 12000 x 8000-pixel resolution.
- HLG Photo mode offers increased dynamic range for improved retail in shadow and highlight regions of the image. When working in HLG Photo mode, images can be saved as an HSP file in either 4K or full resolution, in addition to JPEG and raw formats, for vivid playback on 4K televisions.
- In addition to conventional 3:2, 4:3, 1:1, and 16:9 ratios, photos can also be recorded in 65:24 and 2:1 panoramic formats.
- I.S. Status Scope helps to recognize the type of camera shake being caused by displaying an arrow in the viewfinder or on the rear LCD.
- Flicker Decrease automatically detects the frequency/flicker of artificial lighting and activates the shutter at peak brightness moments to render exposures with consistent exposure and colour.
- Helping to contain bright highlights, Highlight Weighted Metering mode prioritizes highlight values when making an exposure metering in order to prevent scenes from blowing out.
- Offering more versatility than standard Auto White Balance (AWB), an AWBw setting will retain a reddish warm tint while AWBc offers a cooler, bluish tint.
- Lumix Tether enables wired, tethered shooting capabilities via USB connection between the camera and a computer. Aside from offering a larger live view preview, this application also permits remotely triggering the shutter, use of 6K and 4K Photo modes, and video recording start/stop.
- Photo Style modes: Standard, Vivid, Natural, Flat, Landscape, Portrait, Monochrome, L. Monochrome, L. Monochrome D, Cinelike D, Cinelike V, Like709, Standard (HLG), Monochrome (HLG), Like2100, and My Photo Style.
SPECIFICATIONS
Lens Mount Leica L
Camera Format Full-Frame
Pixels
Actual: 25.28 Megapixel
Effective: 24.2 Megapixel
Max Resolution 24 MP: 6000 x 4000
Aspect Ratio 1:1, 2:1, 3:2, 4:3, 16:9, 65:24
Sensor Type / Size MOS, 36 x 24 mm
File Formats
Still Images: JPEG, RAW
Movies: AVCHD, AVC/H.264, HEVC/H.265, MP4
Audio: AAC, Dolby Digital 2ch, Linear PCM
Dust Reduction System Yes
Memory Card Type XQD SD SDHC SDXC
Image Stabilization Sensor-Shift, 5-Way
Video Recording Yes, NTSC
Video Format
3840 x 2160p at 59.94 fps (150 Mb/s MP4 via H.264)
3840 x 2160p at 23.98/29.97 fps (100 Mb/s MP4 via H.264)
1920 x 1080p at 59.94 fps (28 Mb/s MP4 via H.264)
1920 x 1080p at 29.97 fps (20 Mb/s MP4 via H.264)
1920 x 1080p at 59.94 fps (28 Mb/s AVCHD)
1920 x 1080p at 23.98 fps (24 Mb/s AVCHD)
1920 x 1080i at 59.94 fps (24, 17 Mb/s AVCHD)
Aspect Ratio 16:9
Audio Recording
Built-In Mic: With Video (Stereo)
Optional External Mic: With Video (Stereo)
Focus Type Auto & Manual Focus
Focus Mode Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S)
Autofocus Points Contrast Detection: 225
Viewfinder Type Electronic
Viewfinder Pixel Count 5,760,000
Viewfinder Eye Point 21.00 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.78x
Diopter Adjustment -4.0 to +2.0 m
Display Screen 3.2" Rear Touchscreen Tilting LCD (2,100,000)
Screen Coverage 100%
ISO Sensitivity Auto, 100 to 25600 (Extended Mode:50 to 204800)
Shutter
Type: Mechanical Speed: 1/8000 to 60 Second
Type: Mechanical Speed: 0 to 30 Minute in Bulb Mode
Type: Electronic & Mechanical Speed: 1/2000 to 60 Second
Type: Electronic & Mechanical Speed: 0 to 30 Minute in Bulb Mode
Type: Electronic Speed: 1/8000 to 60 Second , Bulb Mode
Type: Electronic Speed: 1/16000 to 1/25 Second in Movie Mode
Remote Control DMW-RS2 (Optional)
Metering Method Center-Weighted Average Metering, Multiple, Spot Metering, Highlight Weighted
Exposure Modes Modes: Aperture Priority, Manual, Program, Shutter Priority
Metering Range EV 0.0 to EV 18.0
Compensation -5 EV to +5 EV (in 1/3 EV Steps)
White Balance Modes Auto, Cloudy, Colour Temperature, Daylight, Flash, Incandescent, Shade, White Set
Buffer/Continuous Shooting
Up to 9 fps at 24 MP for up to 90 Frames in Raw Format
Up to 9 fps at 24 MP for up to 999 Frames in JPEG Format
Flash Modes Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction
Built-in Flash No
Max Sync Speed Mechanical Shutter:1 / 320 Second
Flash Compensation -3 EV to +3 EV (in 1/3 EV steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe, PC Terminal
Self Timer 2, 10 Seconds
Interval Recording Yes

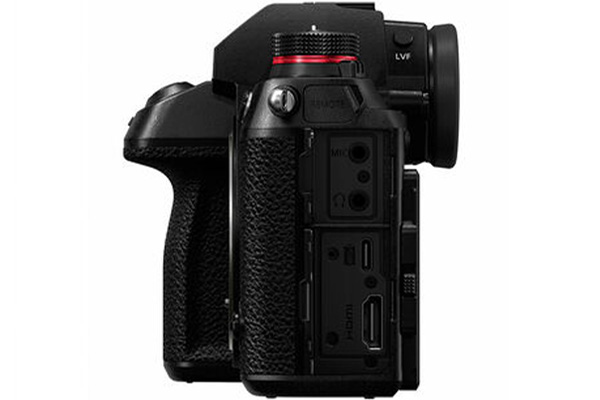

Connectivity 1/8" Headphone, 1/8" Microphone, 2.5mm Sub-mini (2-Ring), HDMI A (Full Size), USB 3.0, USB Type-C, X-Sync Socket
Wi-Fi Capable Yes
Battery 1 x DMW-BLJ31 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 3100 mAh
AC Power Adapter DMW-AC10 (Not Included)
Operating Temperature 14 to 104°F / -10 to 40°C
Operating Humidity 10 to 80%
Dimensions (W x H x D) 5.9 x 4.3 x 3.8" / 148.9 x 110.0 x 96.7 mm excluding protrusions
Weight 2.25 lb / 1021 g with battery and memory card
LENS SPECIFICATIONS
Lumix S 24-105mm f/4 Macro O.I.S. Lens
Focal Length 24 to 105mm
Aperture
Maximum: f/4
Minimum: f/22
Angle of View 84° to 23°
Minimum Focus Distance 11.81" / 30 cm
Magnification 0.5x
Maximum Reproduction Ratio 1:2
Optical Design 16 Elements in 13 Groups
Diaphragm Blades 9, Rounded
Autofocus Yes
Image Stabilization Yes
Filter Thread Front: 77 mm
Dimensions (DxL) 3.31 x 4.65" / 84 x 118 mm
Weight 1.50 lb / 680 g
